CM306C Taped Axial Lead Forming Machine

Model: CM306C
Units in Stock: 0
Added on: Wednesday 26 March, 2014

Share |

Quantity:

1. This machine is used to lead-cutting and forming of taped resistors, diodes, and other axial components.
2. It finishes lead-cutting and forming at the same time, very powerful.
3. The forming span and length of jumper lead are all adjustable.
4. Made of steel materials imported from Japan, its cutters are durable
5. Its motor and electric parts are all imported from Taiwan

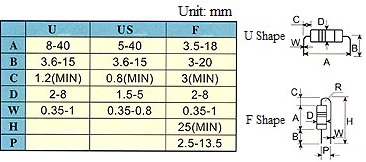

6. It can form U-shaped (horizontal) and F-shaped (vertical) leads. (These two shapes can not be used at the same
time. Please tell us which shape you want when making orders)
7. The U-shape has a special spec US-shape, which points at components of small forming span.


SPECIFICATIONS
1. Power: AC110V/220V 60HZ/50HZ
2. Dimension: L400 x W250 x H190mm
3. Weight: 20kg
4. Efficiency: 50000~60000pcs/H
