Low cost, modular and flexible infrared technology for effective, high yield rework of advanced IC packages.
- Precision solder leaving no marks in reworked circuit boards.
- Movement of surrounding components can be eliminated.
- Generates heat through concentrated infrared heat wave.

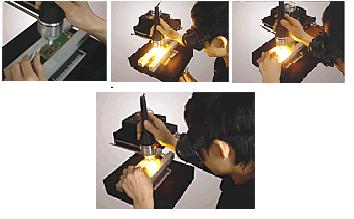

- Aoyue 710 brings sophisticated infrared rework systems to the simplicity of a hand tool.
- Can be used widely for reworking BGAs, micro BGAs, QFPs, PLCCs, SOICs, small SMD and other circuit board components.
- Closed loop temperature control for instant and precise process adjustments.
- Adjustable preheating surface temperature that prevents PCB distortion.
Package content:
Main unit, Preheating station, Cooling stand, Foot switch, Infrared soldering gun, PCB holder, 2 Power cords, Welding goggles.
| SPECIFICATIONS: |
| Power Input : | available in 110V or 220V |
| Frequency: | 50Hz |
| Weight: | 10Kg |
| Total Current: | 5A |
| Main Control Dimension: | 220(w) x 70(h) x 250(d) mm |
| INFRARED SOLDERLIGHT GUN |
| Power Consumption: | 200W |
| Temperature Range: | 100 - 450 degrees Celsius |
| Heating Element with Tip: | Halogen Light Source |
| PRE-HEATER |
| Power Consumption: | 600W |
| Temperature Range: | 100 - 500 degrees Celsius |
| Heating Element: | Quartz Infrared |
| Dimension: | 220(w) x 70(h) x 250(d) mm |
| COOLING STAND |
| Power Consumption: | 12W |
| Dimension: | 140(w) x 55(h) x 180(d) mm |
